Traco Power
THM3-0512WI
TRACOPOWER THM 3-0512WI Isolated Board Mount DC/DC Converter, Regulated, DIP, Fixed, Through Hole, 3 W, 12 V, 250 mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power THM3-0512WI technical specifications.
General
Current - Output 1
250mA
Depth
31.8mm
Efficiency
85%
Height
10.2mm
Isolation Voltage
5kV
Length
31.8mm
Max Input Voltage (DC)
9V
Min Input Voltage (DC)
4.5V
Max Input Voltage
9V
Min Input Voltage
4.5V
Max Operating Temperature
94°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Power
3W
Mount
Through Hole
Nominal Input Voltage
5V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
250mA
Output Voltage
12V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
THM 3WI
Voltage - Output 1
12V
Weight
14g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power THM3-0512WI Datasheet
Download the complete datasheet for Traco Power THM3-0512WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

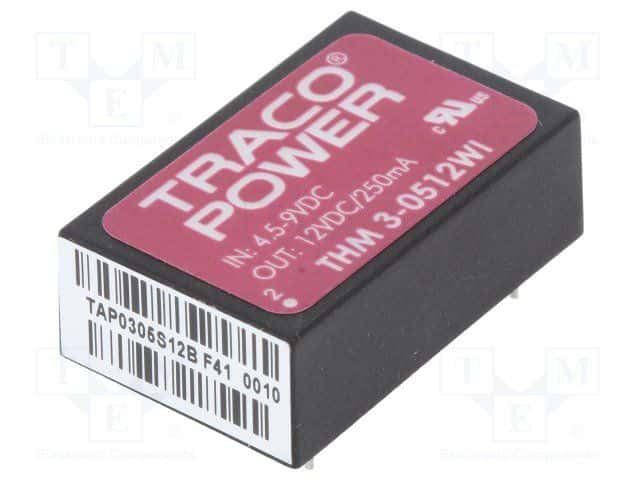

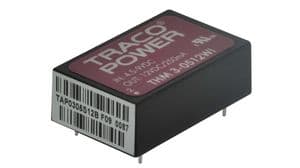

Product Images
