Traco Power
THM6-0511WI

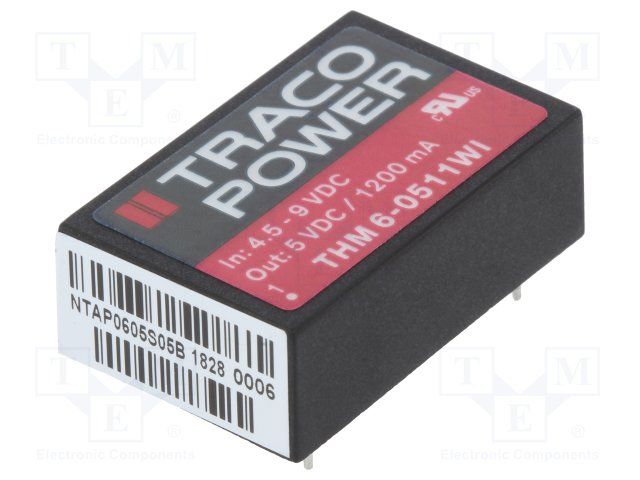

TRACOPOWER THM 6-0511WI Isolated Board Mount DC/DC Converter, Regulated, DIP, Fixed, Through Hole, 6 W, 5 V, 1.2 A
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power THM6-0511WI technical specifications.
General
| Current - Output 1 | 1.2A |
| Depth | 31.8mm |
| Efficiency | 86% |
| Height | 10.2mm |
| Isolation Voltage | 5kV |
| Length | 31.8mm |
| Max Input Voltage (DC) | 9V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 9V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 88°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Power | 6W |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 1.2A |
| Output Voltage | 5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THM 6WI |
| Voltage - Output 1 | 5V |
| Weight | 14g |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power THM6-0511WI Datasheet
Download the complete datasheet for Traco Power THM6-0511WI to view detailed technical specifications.
