MountingThrough Hole
Power15W
Quick Jump:
Technical Specifications
Traco Power THN15-2412WI technical specifications.
General
| Current - Output 1 | 1.3A |
| Depth | 25.4mm |
| Efficiency | 87% |
| Height | 9.9mm |
| Isolation | Isolated |
| Isolation Voltage | 1.6kV |
| Length | 25.4mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.3A |
| Max Output Power | 15W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Output Power | 15W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THN 15WI |
| Voltage - Output 1 | 12V |
| Weight | 15g |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power THN15-2412WI Datasheet
Download the complete datasheet for Traco Power THN15-2412WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

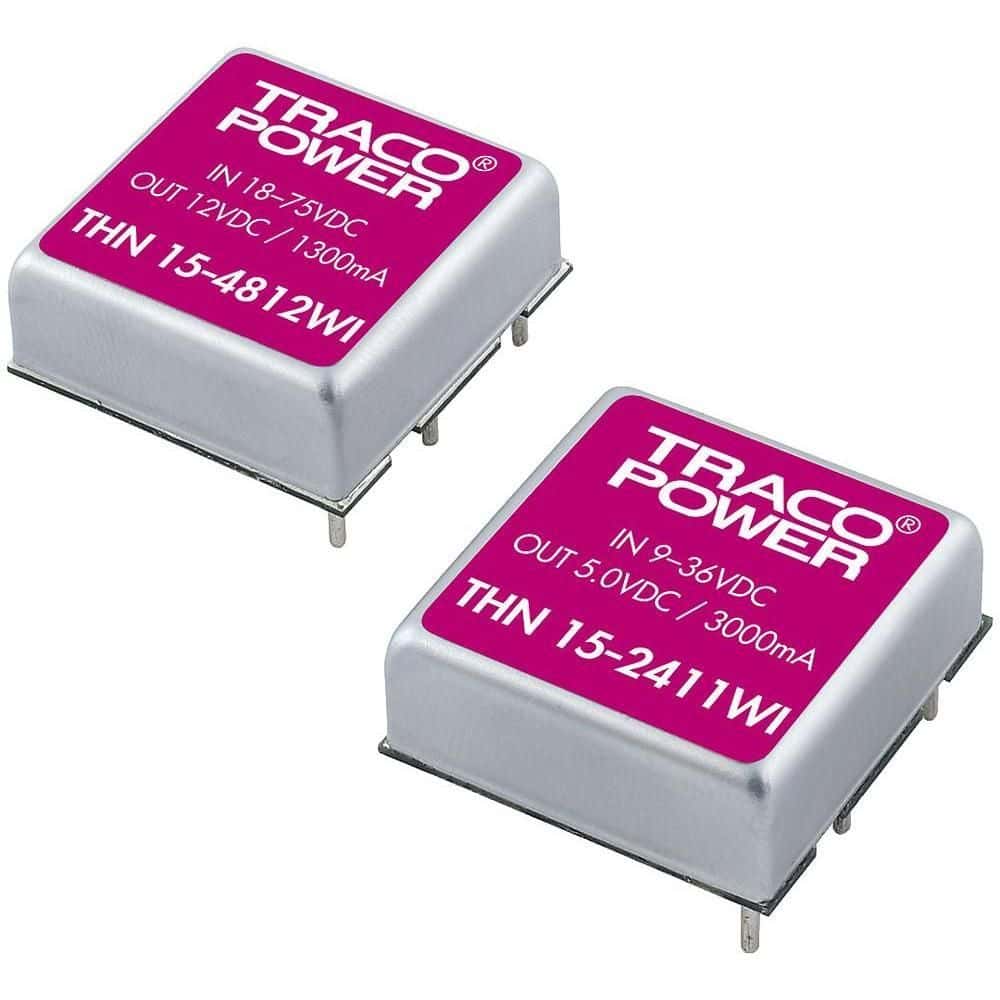

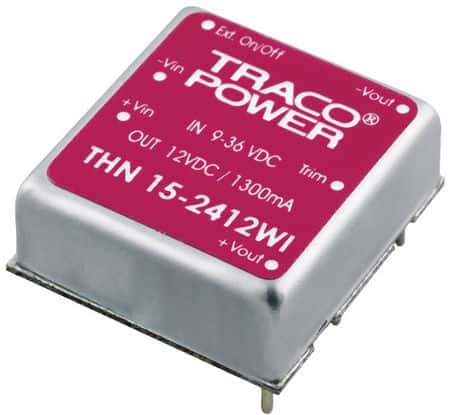

Product Images
