Traco Power
THP3-7222
TRACOPOWER THP 3-7222 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 36 V, 160 V, 3 W, 12 V
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power THP3-7222 technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 125mA |
| Current - Output 2 | 125mA |
| Depth | 31.8mm |
| Efficiency | 83% |
| Flammability Rating | UL94 V-0 |
| Height | 10.7mm |
| Isolation Voltage | 4kV |
| Length | 32mm |
| Max Input Voltage (DC) | 160V |
| Min Input Voltage (DC) | 36V |
| Max Input Voltage | 160V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 125mA |
| Max Output Power | 3W |
| Mount | Through Hole |
| Nominal Input Voltage | 72V |
| Number of Outputs | 2 |
| Output Current | 250mA |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THP 3 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 16.2g |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power THP3-7222 Datasheet
Download the complete datasheet for Traco Power THP3-7222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

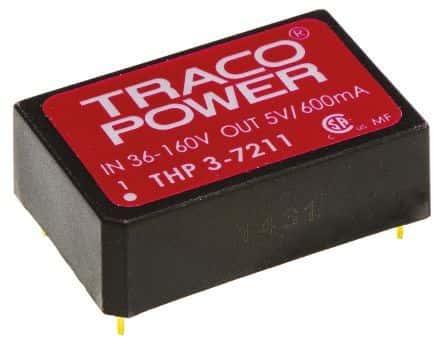

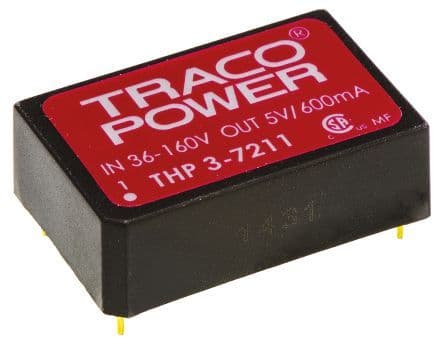

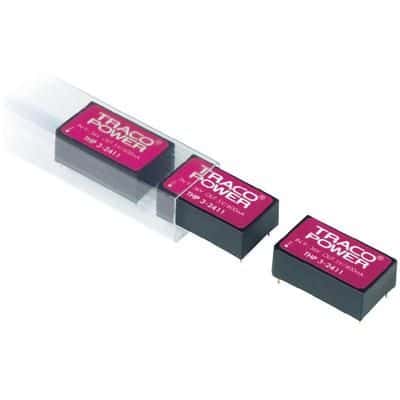

Product Images
