PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TMH0512D technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 80mA |
| Current - Output 2 | 80mA |
| Depth | 19.5mm |
| Efficiency | 79% |
| Features | SCP |
| Height | 10.2mm |
| Isolation | Isolated |
| Isolation Voltage | 1kV |
| Length | 19.5mm |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Output Current | 80mA |
| Output Power | 2W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMH (2W) |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 2.7g |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMH0512D Datasheet
Download the complete datasheet for Traco Power TMH0512D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

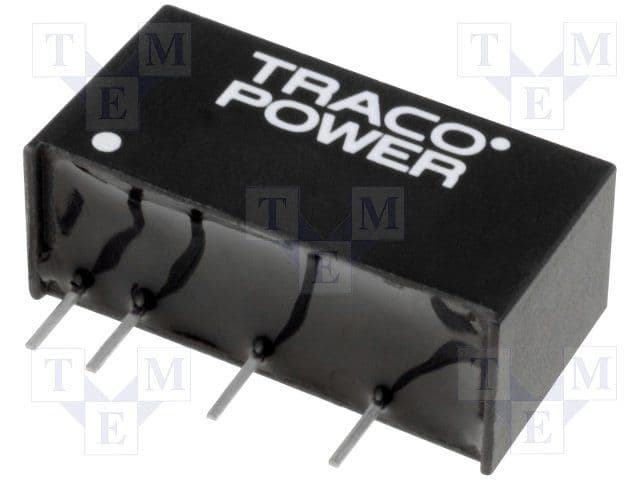

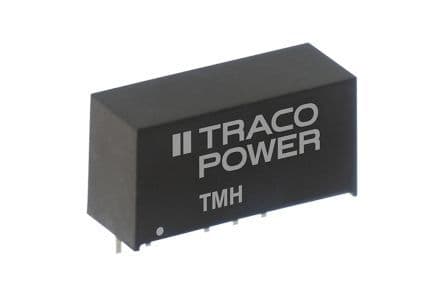

Product Images
