PackageModule
MountingThrough Hole
PowerYes
Quick Jump:
Technical Specifications
Traco Power TMR1-2412 technical specifications.
General
Package/Case
Module
Current - Output 1
83mA
Depth
17mm
Efficiency
80%
Features
OCP, SCP
Height
11mm
Isolation Voltage
1.5kV
Length
17mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
18V
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
83mA
Max Output Power
1W
Max Power Dissipation
996mW
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
83mA
Output Voltage
12V
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMR 1 (1W)
Voltage - Output 1
12V
Width
7.62mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR1-2412 Datasheet
Download the complete datasheet for Traco Power TMR1-2412 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

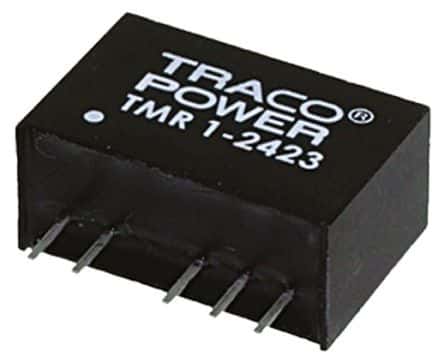

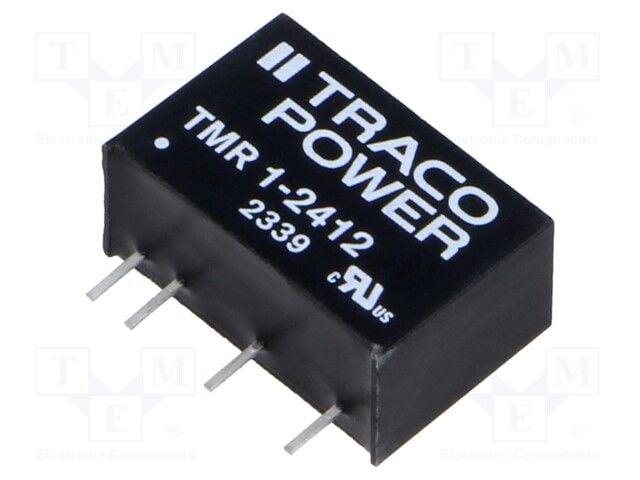

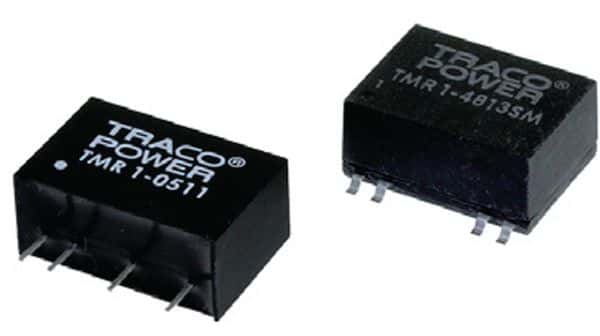

Product Images
