Mains power connector, male, featuring a 5V nominal output voltage and 3A maximum output current, delivering up to 15W of power. This wall-mountable unit operates within a 100-240V AC input range and includes a 72-inch cord with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector. Approvals include cULus, and the component is RoHS compliant. Operating temperature range is 0°C to 40°C.
Package100
MountingWall
Power15W
Quick Jump:
Technical Specifications
Triad Magnetics WSU050-3000-R technical specifications.
General
Approvals
cULus
Package/Case
100
Cord Length
72inch
Current - Output 1
3A
Height
1.22inch
Lead Free
Lead Free
Length
3.03inch
Max Input Voltage (AC)
240V
Min Input Voltage (AC)
100V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Output Power
15W
Max Power Dissipation
15W
Mount
Wall
Nominal Output Voltage
5V
Number of Outputs
1
Output Connector
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Output Current
3A
Output Power
15W
Output Voltage
5V
Package Quantity
80
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WSU
Voltage - Output 1
5V
Width
1.89inch
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics WSU050-3000-R Datasheet
Download the complete datasheet for Triad Magnetics WSU050-3000-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

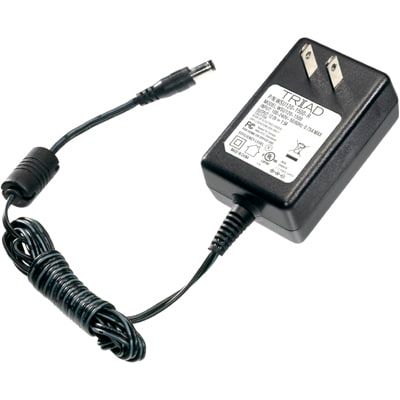

Product Images
