12V DC, 1.5A, 18W mains power connector for wall mounting. Features a single output with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug. Operates within a 100-240V AC input range and a 0°C to 40°C temperature range. RoHS compliant.
Package100
MountingWall
Power18W
Quick Jump:
Technical Specifications
Triad Magnetics WSU120-1500 technical specifications.
General
Package/Case
100
Current - Output 1
1.5A
Lead Free
Lead Free
Max Input Voltage (AC)
240V
Min Input Voltage (AC)
100V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Power
18W
Max Power Dissipation
18W
Mount
Wall
Nominal Output Voltage
12V
Number of Outputs
1
Output Connector
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Output Current
1.5A
Output Power
18W
Output Voltage
12V
Package Quantity
80
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WSU
Voltage - Output 1
12V
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics WSU120-1500 Datasheet
Download the complete datasheet for Triad Magnetics WSU120-1500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

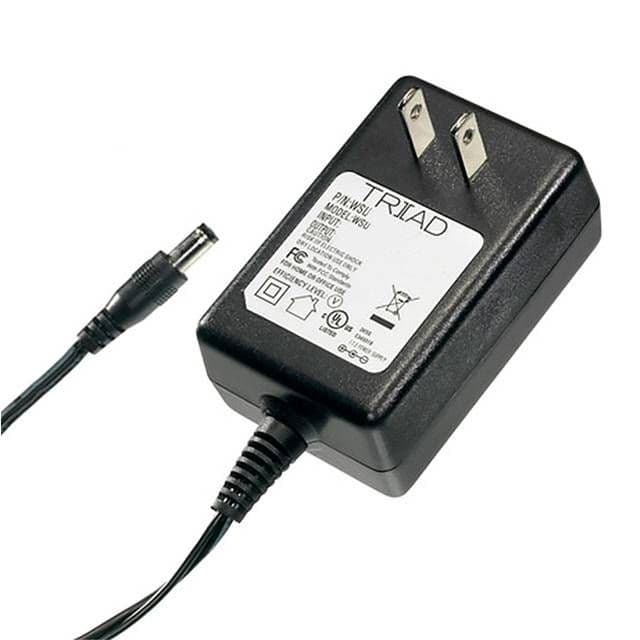

Product Images
