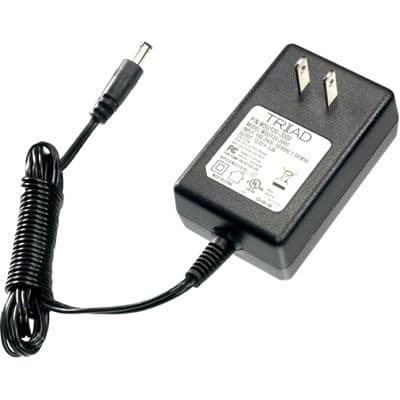

This mains power connector is a male plug designed for wall mounting, featuring a 24V nominal output voltage and a maximum output current of 1.5A, delivering up to 36W of power. It operates with an input voltage range of 100-240V AC and includes a 72-inch cord with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector. Approvals include cULus, and the component is RoHS compliant. Operating temperature range is 0°C to 40°C.
Package100
MountingWall
Power36W
Quick Jump:
Technical Specifications
Triad Magnetics WSU240-1500-R technical specifications.
General
Approvals
cULus
Package/Case
100
Cord Length
72inch
Current - Output 1
1.5A
Height
1.22inch
Lead Free
Lead Free
Length
3.31inch
Max Input Voltage (AC)
240V
Min Input Voltage (AC)
100V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Power
36W
Max Power Dissipation
36W
Mount
Wall
Nominal Output Voltage
24V
Number of Outputs
1
Output Connector
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Output Current
1.5A
Output Power
36W
Output Voltage
24V
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WSU
Voltage - Output 1
24V
Width
2.09inch
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics WSU240-1500-R Datasheet
Download the complete datasheet for Triad Magnetics WSU240-1500-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
