Through-hole mount LED emitter with a plastic package, featuring a circular lens. Operates with a nominal wavelength of 850nm, with a minimum of 830nm and a maximum of 870nm. Designed for a forward current of 100mA and a maximum reverse voltage of 1V. This RoHS compliant component has a spectral bandwidth of 35nm and operates within a temperature range of -40°C to 100°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
TT OPF370A technical specifications.
General
| Depth | 5.72mm |
| Forward Current | 100mA |
| Height | 4.27mm |
| Lead Free | Lead Free |
| Length | 5.72mm |
| Lens Style | Circular |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 1V |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Wavelength-Nom | 850nm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 1V |
| Reverse Voltage (DC) | 1V |
| RoHS Compliant | Yes |
| Spectral Bandwidth | 35nm |
| Wavelength | 850nm |
| Width | 5.72mm |
Compliance
| RoHS | Compliant |
Datasheet
TT OPF370A Datasheet
Download the complete datasheet for TT OPF370A to view detailed technical specifications.
No datasheet is available for this part.

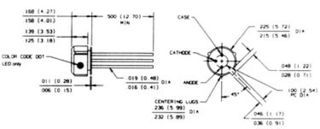

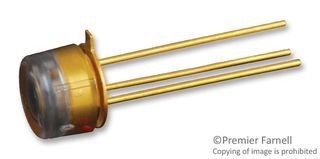

Product Images
