1-channel DC input optocoupler with transistor DC output. Features 10kV isolation voltage, 30V collector-emitter voltage, and 20mA input current. Offers a 100% current transfer ratio and 400mV collector-emitter saturation voltage. Designed for through-hole and surface mount applications, operating from -40°C to 85°C. Packaged in bulk, lead-free, and RoHS compliant.
PackageAxial
MountingThrough Hole, Surface Mount
Power100mW
Quick Jump:
Technical Specifications
TT OPI1264C technical specifications.
General
| Package/Case | Axial |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 100% |
| Forward Current | 40mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 10kV |
| Isolation Voltage-Max | 10kV |
| Lead Free | Lead Free |
| Max Input Current | 40mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Voltage | 30V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 2V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
TT OPI1264C Datasheet
Download the complete datasheet for TT OPI1264C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

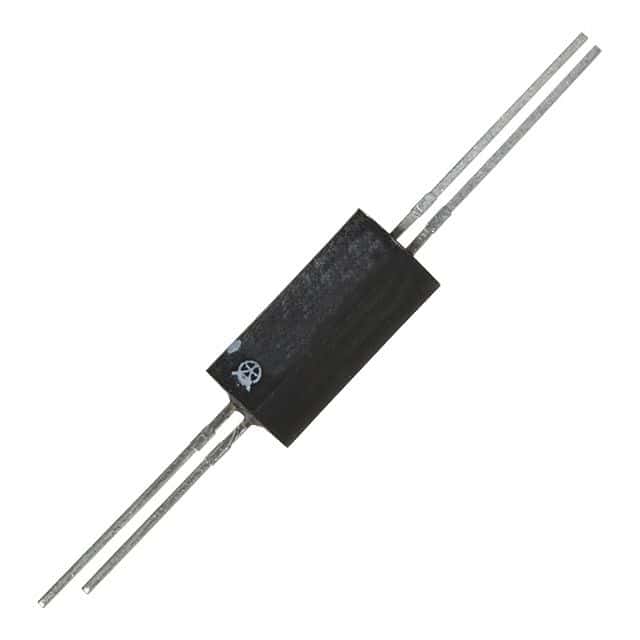

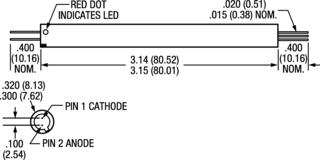

Product Images
