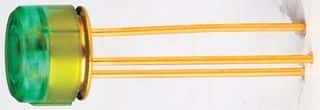

850nm laser diode with a 2.5Gbps data rate, designed for through-hole mounting. Features a 30mA current rating and operates within a voltage range of 1.6V to 2.2V. This lead-free component offers a maximum power dissipation of 1.4mW and a reverse voltage of 5V. It is RoHS compliant and suitable for operation between 0°C and 85°C.
Sign in to ask questions about the TT OPV314YAT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TT OPV314YAT technical specifications.
| Current Rating | 30mA |
| Data Rate | 2.5Gbps |
| Diameter | 9.52mm |
| Height | 14.6mm |
| Lead Free | Lead Free |
| Lead Length | 10.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.4mW |
| Max Supply Voltage | 2.2V |
| Min Supply Voltage | 1.6V |
| Mount | Through Hole |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Wavelength | 850nm |
| Width | 9.52mm |
| RoHS | Compliant |
Download the complete datasheet for TT OPV314YAT to view detailed technical specifications.
