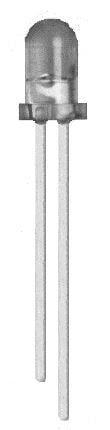

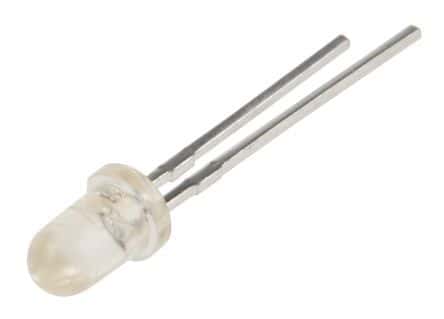

850nm laser diode with 1.5mW output power, designed for through-hole mounting. Features a 2-pin T-1 package with a 20mA current rating and a maximum supply voltage of 2.2V. Operates within a temperature range of -40°C to 85°C. This lead-free, RoHS-compliant component offers a compact 3.17mm width and 5.97mm height.
Sign in to ask questions about the TT OPV332 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TT OPV332 technical specifications.
| Package/Case | T |
| Current Rating | 20mA |
| Height | 5.97mm |
| Lead Free | Lead Free |
| Lead Length | 17.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5mW |
| Max Supply Voltage | 2.2V |
| Mount | Through Hole |
| Output Power | 1.5mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Wavelength | 850nm |
| Width | 3.17mm |
| RoHS | Compliant |
Download the complete datasheet for TT OPV332 to view detailed technical specifications.
