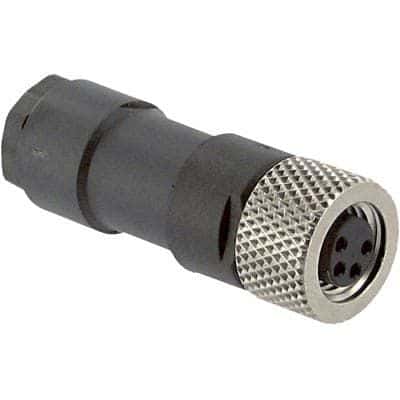

This 4-contact cable mount connector features a brass contact with gold plating, a PBT material, and a straight orientation. It has a current rating of 3A and a voltage rating of 36V. The connector is rated for operation between -40°C and 85°C and meets IP67 ratings for environmental protection. It is not RoHS compliant and does not meet SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Turck B5141-0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 3A |
| Gender | Male |
| Material | PBT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 4 |
| Orientation | Straight |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | B |
| Termination | Solder |
| Voltage Rating | 36V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 36V |
| Wire/Cable Diameter | 5mm |
| Wire/Cable Gauge | 24AWG |
| RoHS | Not Compliant |
