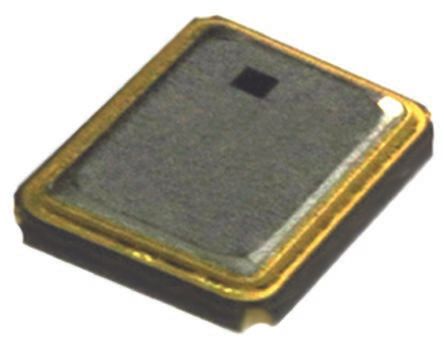

10MHz crystal oscillator, surface mount (SMD/SMT) package, featuring a 12pF load capacitance, 30ppm frequency tolerance, and 30ppm frequency stability. This component offers an ESR of 100 Ohms and operates within a temperature range of -40°C to 85°C. Packaged in tape and reel, its dimensions are 3.2mm (length) x 2.5mm (width) x 0.7mm (height), with a depth of 2.5mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TXC 7M-10.000MAHE-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 10MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.7mm |
| Length | 3.2mm |
| Load Capacitance | 12pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Series | 7M |
| Series Resistance | 100R |
| Width | 2.5mm |
| RoHS | Compliant |
Download the complete datasheet for TXC 7M-10.000MAHE-T to view detailed technical specifications.
