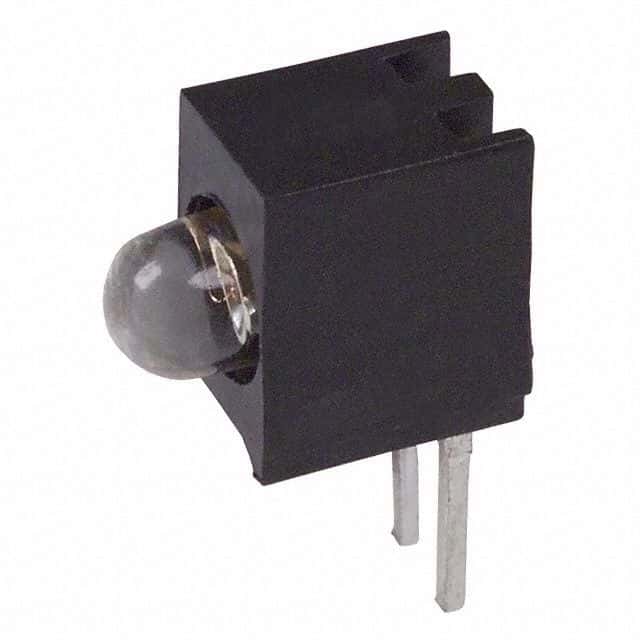

Red LED emitter, T1 package, right-angle orientation for PCB mounting. Features a diffused, tinted dome lens with a 45° viewing angle. Operates at 20mA forward current and 1.8V forward voltage, delivering 65mcd luminous intensity. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the VCC Chml 5608F1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
VCC Chml 5608F1 technical specifications.
| Color | Red |
| Current | 20mA |
| Depth | 4.1mm |
| Forward Current | 20mA |
| Height | 6.4mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 4.1mm |
| Lens Color | Red |
| Lens Size | 1.74mm |
| Lens Style | Dome, Diffused, Tinted, Flat |
| Luminous Intensity | 65mcd |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 5608 |
| Viewing Angle | 45° |
| Voltage Rating | 1.8V |
| Width | 4.1mm |
| RoHS | Compliant |
