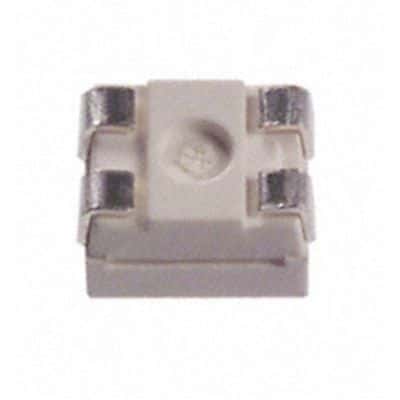

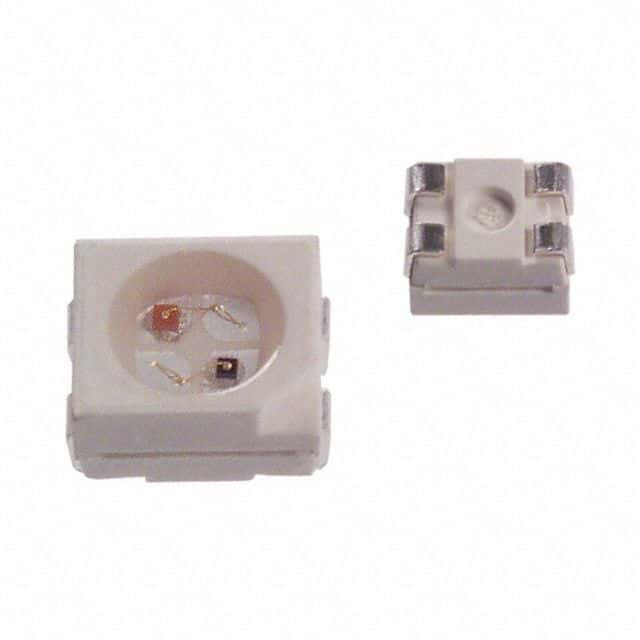

Surface mount LED emitter featuring dual green and red illumination in a clear PLCC package. This component offers a 120° viewing angle and 20mA forward current with a 2V forward voltage. Key specifications include 570nm wavelength, 10mcd luminous intensity, and a maximum power dissipation of 100mW. Operating temperature range is -40°C to 85°C, with a 5V reverse voltage rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the VCC Chml CMD6722VRVGCTR8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PLCC |
| Color | Green, Red |
| Depth | 3.2mm |
| Forward Current | 20mA |
| Height | 2.1mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Clear |
| Lens Size | 2.4mm |
| Lens Style | Round, Flat, Clear, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 100mW |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | CMD67-22 |
| Viewing Angle | 120° |
| Voltage | 2V |
| Wavelength | 570nm |
| Width | 2.8mm |
| RoHS | Compliant |
