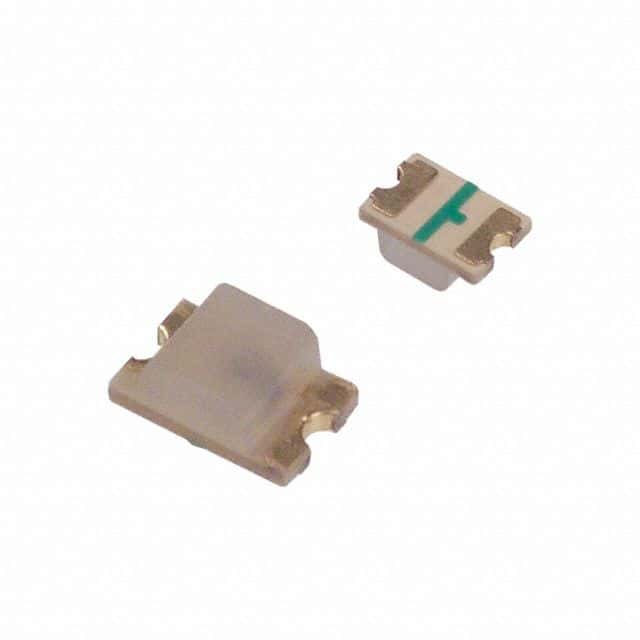

Red diffused 0805 SMD LED emitter with a 170° viewing angle and 637nm wavelength. Features a 1.25mm x 2mm x 0.8mm rectangular, flat, diffused, colorless lens. Operates with a 20mA forward current and 5V reverse voltage, offering 90mcd luminous intensity. This lead-free, RoHS compliant component is surface mountable and supplied on tape and reel.
Package0805
MountingSurface Mount
Power75mW
Quick Jump:
Technical Specifications
VCC Chml CMDA5AR7D1S technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Color
Red
Depth
1.25mm
Forward Current
20mA
Height
0.8mm
Illumination Color
Red
Lead Free
Lead Free
Length
2mm
Lens Size
1.25mm
Lens Style
Rectangular, Flat, Diffused, Colorless
Lens Transparency
Diffused
Luminous Intensity
90mcd
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Elements
1
Package Quantity
4000
Packaging
Tape and Reel
Power Dissipation
75mW
Reverse Voltage
5V
Reverse Voltage (DC)
5V
RoHS Compliant
Yes
Viewing Angle
170°
Wavelength
637nm
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
VCC Chml CMDA5AR7D1S Datasheet
Download the complete datasheet for VCC Chml CMDA5AR7D1S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
