General purpose optocoupler featuring 2.5kV isolation voltage, a 100mA maximum collector current, and a 30V collector-emitter voltage. This surface mount device offers a 20% current transfer ratio and operates with DC input. With a minimum operating temperature of -55°C and a maximum of 100°C, it provides 5kV isolation voltage and 250mW power dissipation.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay 4N25S technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
500mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
500mV
Current Transfer Ratio
20%
Forward Current
80mA
Input Type
DC
Isolation Voltage
2.5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
30V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
100mA
Output Voltage
30V
Package Quantity
65
Packaging
Rail/Tube
Power Dissipation
250mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay 4N25S Datasheet
Download the complete datasheet for Vishay 4N25S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

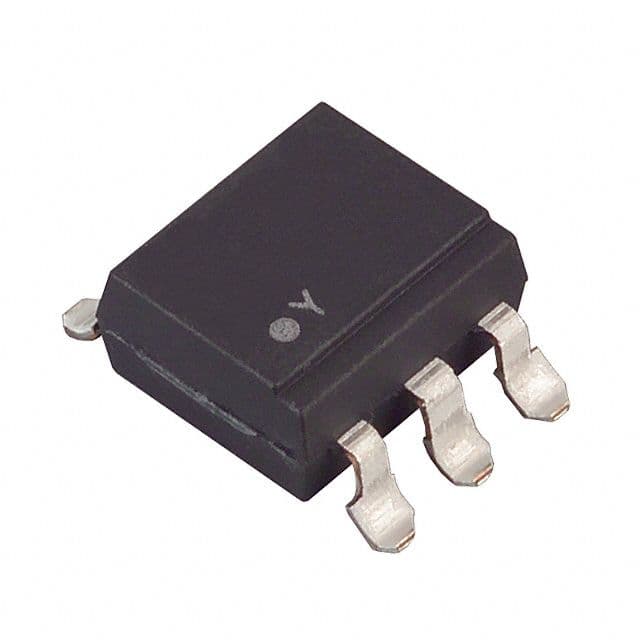

Product Images
