General purpose optocoupler featuring a single channel DC input and transistor output. This surface mount device offers 5kV isolation voltage, 30V collector-emitter voltage, and a maximum collector current of 100mA. Operating across a wide temperature range of -55°C to 100°C, it has a maximum power dissipation of 250mW and a forward current of 80mA. Packaged in a 6-pin PDIP SMD format, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay 4N25S-TA1 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 500mV |
| Forward Current | 80mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 80mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 100mA |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 4N25S-TA1 Datasheet
Download the complete datasheet for Vishay 4N25S-TA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

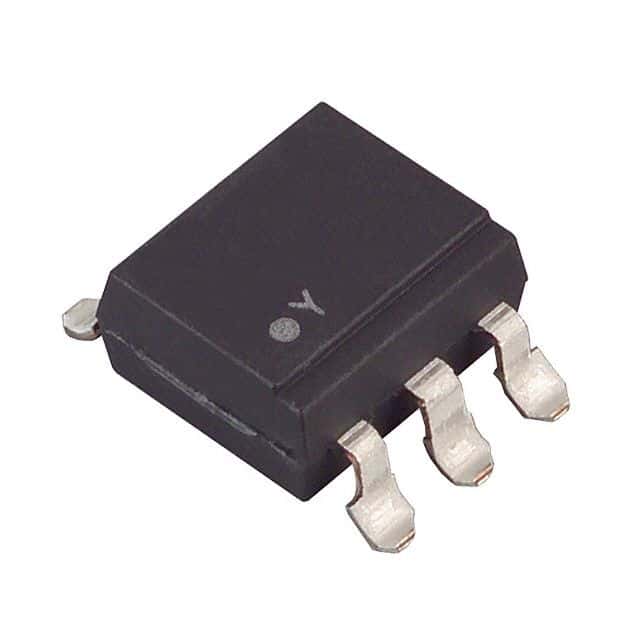

Product Images
