Surface mount transistor output optocoupler featuring 1 channel and 1 element. Offers 5.3kV isolation voltage and a 30V collector-emitter voltage. With a 10mA input current, it provides a 50% current transfer ratio and a maximum output current of 50mA per channel. Designed for surface mounting, this RoHS compliant component operates from -55°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Vishay 4N35-X009T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Voltage (VCEO) | 30V |
| Current Transfer Ratio | 50% |
| Forward Current | 60mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 4N35-X009T Datasheet
Download the complete datasheet for Vishay 4N35-X009T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

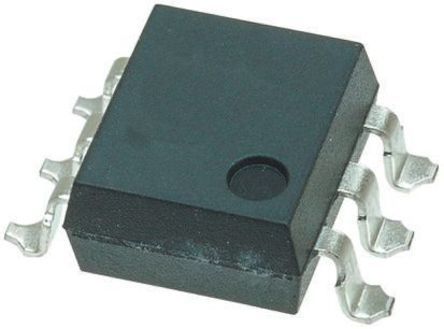

Product Images
