General purpose optocoupler featuring a DC input and a transistor output, providing 3.55kV isolation. This 1-channel device offers a maximum collector emitter voltage of 30V and a maximum collector current of 100mA. With a forward current of 60mA and a current transfer ratio of 100%, it operates within a temperature range of -55°C to 100°C. The component is housed in a 6-pin SMD package, suitable for surface mounting, and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power350mW
Quick Jump:
Technical Specifications
Vishay 4N35S-TA1 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 100% |
| Forward Current | 60mA |
| Height | 3.5mm |
| Input Type | DC |
| Isolation Voltage | 3.55kV |
| Isolation Voltage-Max | 3.55kV |
| Lead Free | Lead Free |
| Length | 7.3mm |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 350mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 100mA |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 4N35S-TA1 Datasheet
Download the complete datasheet for Vishay 4N35S-TA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

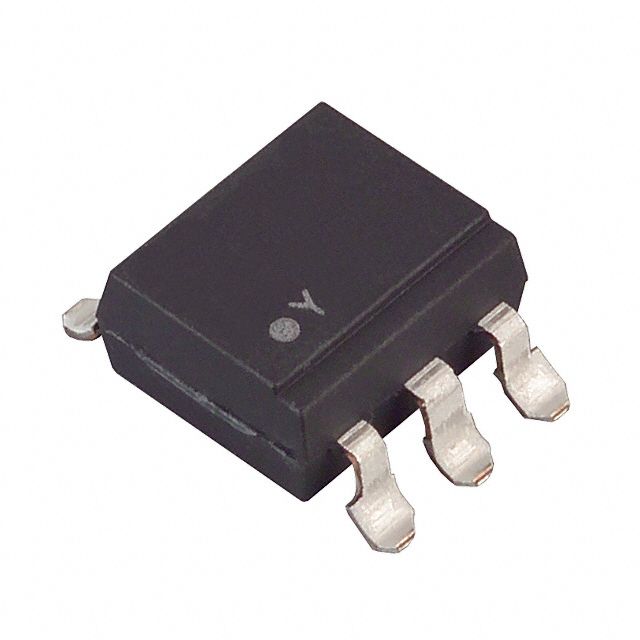

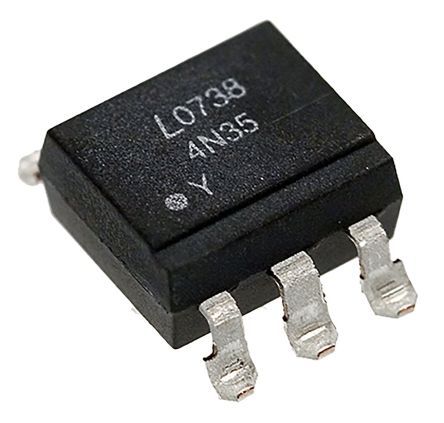

Product Images
