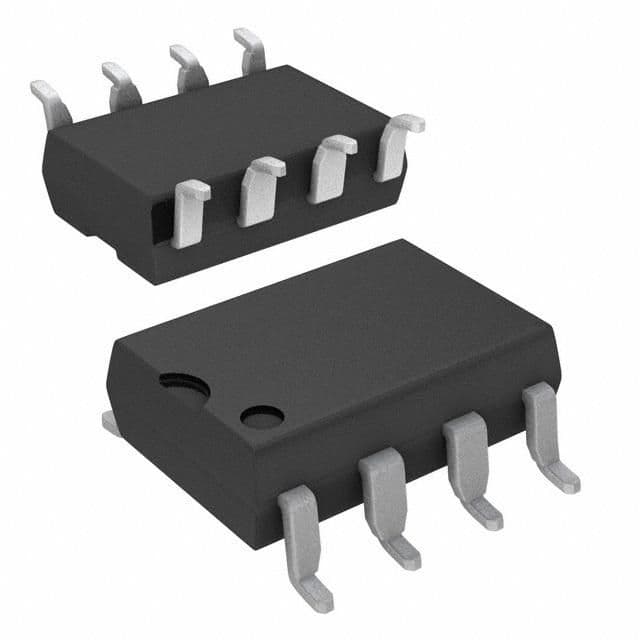

The 6N135S is a general purpose optocoupler with a maximum operating temperature range of -40°C to 85°C. It has a maximum output voltage of 20V and a maximum power dissipation of 100mW. The device is packaged in a surface mount package and is RoHS compliant. It has a current transfer ratio of 50% and a maximum collector current of 8mA. The 6N135S is suitable for use in a variety of applications where electrical isolation is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 6N135S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay 6N135S technical specifications.
| Package/Case | SMD/SMT |
| Current Transfer Ratio | 50% |
| Forward Current | 16mA |
| Input Type | DC |
| Max Collector Current | 8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 8mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Vishay 6N135S to view detailed technical specifications.
