Technical Specifications
Vishay BAV103-GS08 technical specifications.
General
| Average Rectified Current | 250mA |
| Package/Case | SOD-80-2 |
| Current | 1A |
| Diameter | 1.6mm |
| Forward Current | 250mA |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 250V |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Voltage | 250V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay BAV103-GS08 Datasheet
Download the complete datasheet for Vishay BAV103-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

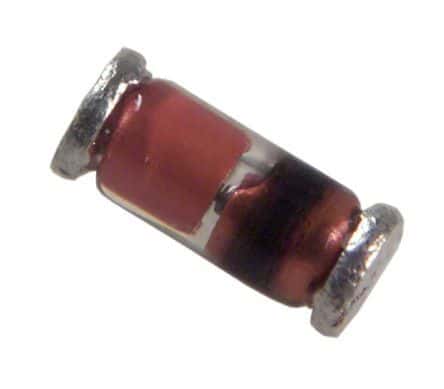

Product Images
