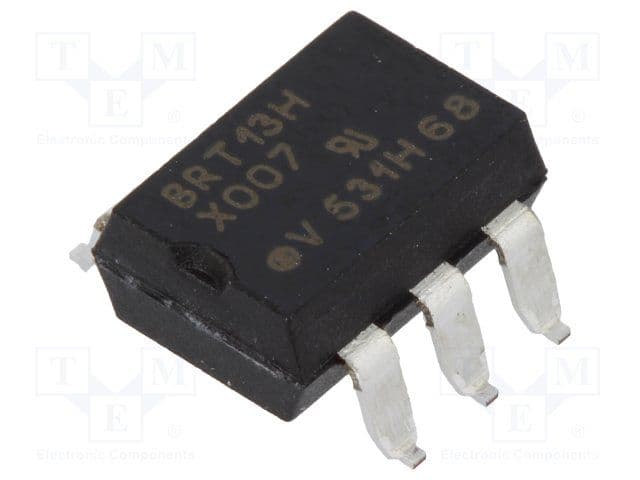

The BRT13H-X007 is a general-purpose optocoupler from Vishay, featuring a 1-channel design with a maximum input voltage of 1.35V and a nominal input voltage of 1.1V. It has a maximum operating temperature of 100°C and a minimum operating temperature of -40°C. The device is packaged in a surface-mount configuration and has a power dissipation of 630mW. It also boasts an isolation voltage of 5.3kV, making it suitable for high-reliability applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BRT13H-X007 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Forward Current | 20mA |
| Isolation Voltage | 5.3kV |
| Max Input Voltage | 1.35V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Input Voltage | 1.1V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 300mA |
| Output Voltage | 800V |
| Packaging | Rail/Tube |
| Power Dissipation | 630mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| RoHS | Compliant |
