General purpose optocoupler featuring 5kV isolation voltage and a 1-channel transistor output with base connection. Delivers 150mA maximum output current per channel with a 70V collector-emitter voltage (VCEO). Achieves a 320% current transfer ratio and operates with a 60mA forward current. Packaged in a 6-pin PDIP for through-hole mounting, this RoHS compliant component offers a wide operating temperature range from -55°C to 100°C.
PackagePDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Vishay CNY17-4M technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
320%
Fall Time
10000ns
Forward Current
60mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
70V
Package Quantity
65
Packaging
Rail/Tube
Power Dissipation
250mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay CNY17-4M Datasheet
Download the complete datasheet for Vishay CNY17-4M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

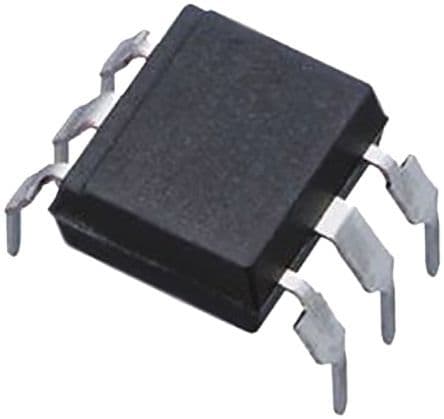

Product Images
