High-performance optocoupler featuring a 300% current transfer ratio and 8.2kV isolation voltage. This single-channel device offers a 32V collector-emitter voltage and 50mA maximum collector current. Designed for surface mounting on PCBs, it operates across a wide temperature range of -55°C to 85°C with a 2.7µs fall time. The component is RoHS compliant and packaged on tape and reel.
PackageSMD/SMT
MountingSurface Mount, PCB
Power130mW
Quick Jump:
Technical Specifications
Vishay CNY64AGRST technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 32V |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 300% |
| Fall Time | 2.7us |
| Forward Current | 50mA |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 8.2kV |
| Isolation Voltage-Max | 8.2kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 75mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 32V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Packaging | Tape and Reel |
| Power Dissipation | 130mW |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CNY64AGRST Datasheet
Download the complete datasheet for Vishay CNY64AGRST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

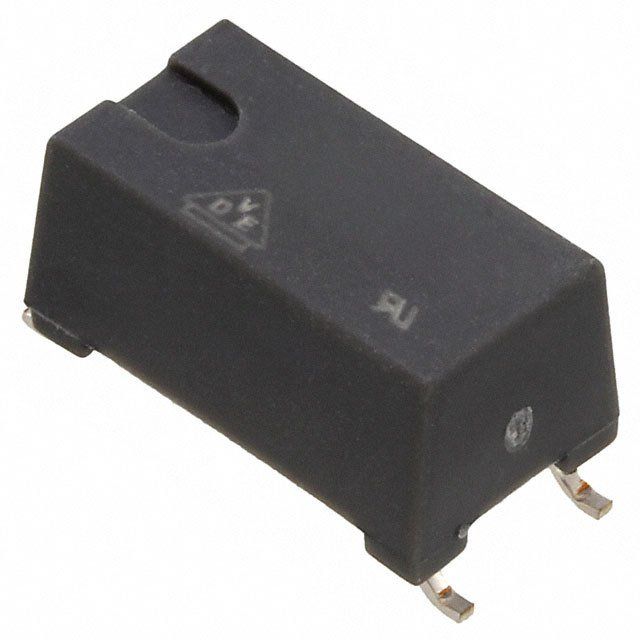

Product Images
