Surface mount optocoupler featuring a 1-channel, 1-element configuration. Achieves a high current transfer ratio of 300% with a 50mA input current. Offers 32V collector-emitter voltage and 50mA maximum collector current. Provides 8.2kV isolation voltage and operates across a -55°C to 85°C temperature range. Lead-free and RoHS compliant.
PackageSMD/SMT
MountingSurface Mount, PCB
Power250mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Vishay CNY65AGRST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Vishay CNY65AGRST technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 32V |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 300% |
| Fall Time | 2.7us |
| Forward Current | 75mA |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 13.9kV |
| Isolation Voltage-Max | 8.2kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 75mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 32V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 32V |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CNY65AGRST Datasheet
Download the complete datasheet for Vishay CNY65AGRST to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

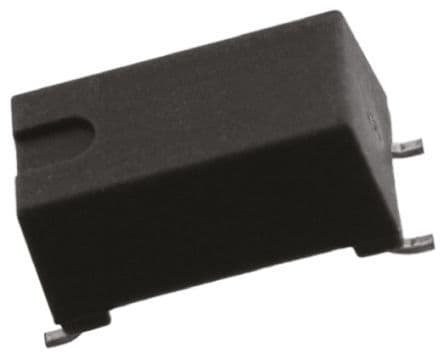

Product Images
