Technical Specifications
Vishay GP02-40-E354 technical specifications.
General
| Average Rectified Current | 250mA |
| Package/Case | DO-204AL |
| Diode Capacitance-Max | 3pF |
| Forward Current | 250mA |
| Height | 2.7mm |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Forward Surge Current (Ifsm) | 15A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 4kV |
| Max Reverse Current | 5uA |
| Mount | Through Hole |
| Natural Thermal Resistance | 130°C/W |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 15A |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 2us |
| Reverse Recovery Time-Max | 2us |
| Width | 2.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay GP02-40-E354 Datasheet
Download the complete datasheet for Vishay GP02-40-E354 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

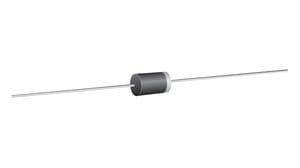

Product Images
