Dual-channel optocoupler with DC input and transistor DC output, featuring a 70V collector-emitter breakdown voltage and 400mV collector-emitter saturation voltage. This surface-mount device offers 4kV isolation voltage and a 10mA input current for 30mA forward current. Operating across a -55°C to 100°C temperature range, it boasts a 125% current transfer ratio and a 4.7µs fall time, packaged in an 8-pin SOIC for tape and reel distribution.
PackageSOIC
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Vishay ILD206T technical specifications.
General
Approvals
UL
Package/Case
SOIC
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
125%
Fall Time
4.7us
Forward Current
30mA
Input Current
10mA
Input Type
DC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Max Input Current
30mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
300mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
DC Rated Voltage
5V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay ILD206T Datasheet
Download the complete datasheet for Vishay ILD206T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

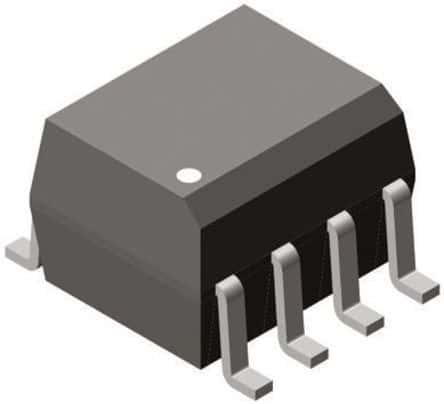

Product Images
