Dual-channel phototransistor optocoupler for DC input and output, featuring a 70V collector-emitter breakdown voltage and 4kV isolation. This surface-mount SOIC package component operates with a 10mA input current and offers a 120% current transfer ratio. It supports a maximum forward current of 30mA and a power dissipation of 300mW, with an operating temperature range of -55°C to 100°C. UL approved and lead-free.
PackageSOIC
MountingSurface Mount, PCB
Power300mW
Quick Jump:
Technical Specifications
Vishay ILD217T technical specifications.
General
Approvals
UL
Package/Case
SOIC
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
120%
Forward Current
30mA
Height
3.5mm
Input Current
10mA
Input Type
DC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Max Input Current
30mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
300mW
Mount
Surface Mount, PCB
Number of Channels
2
Number of Elements
2
Output Type
Phototransistor
Output Voltage
70V
Packaging
Tape and Reel
Power Dissipation
300mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
Reverse Voltage (DC)
6V
DC Rated Voltage
1.2V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay ILD217T Datasheet
Download the complete datasheet for Vishay ILD217T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

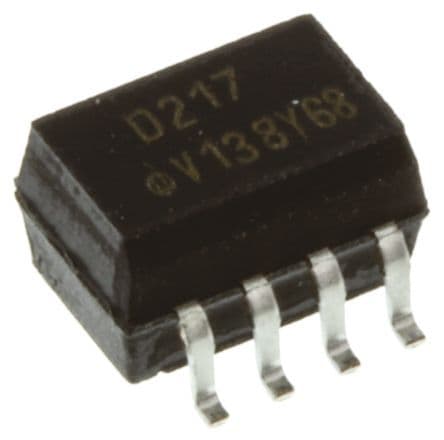

Product Images
