Dual-channel DC input optocoupler with transistor DC output, featuring a 70V collector-emitter voltage and 400mA maximum collector current. This through-hole mounted component offers a 5.3kV isolation voltage and a 400% current transfer ratio. Operating across a -40°C to 100°C temperature range, it has a 250mW power dissipation and is available in a lead-free DIP package.
PackageDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Vishay ILD5 technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 400% |
| Forward Current | 60mA |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 400mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| DC Rated Voltage | 1.25V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay ILD5 Datasheet
Download the complete datasheet for Vishay ILD5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

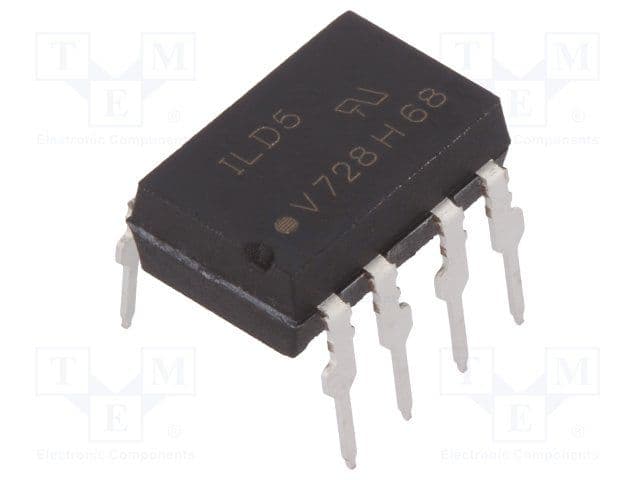

Product Images
