Four-channel transistor output optocoupler featuring 5.3kV isolation voltage and 70V collector-emitter voltage. Delivers a 320% current transfer ratio with a 10mA input current and 60mA forward current. Designed for through-hole mounting in a PDIP package, operating from -55°C to 100°C with 500mW power dissipation.
PackagePDIP
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Vishay ILQ615-4 technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Voltage (VCEO) | 70V |
| Current Transfer Ratio | 320% |
| Forward Current | 60mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| DC Rated Voltage | 1.15V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay ILQ615-4 Datasheet
Download the complete datasheet for Vishay ILQ615-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

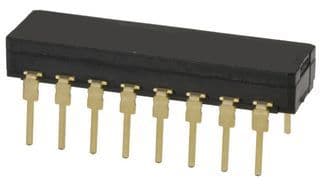

Product Images
