Single-channel optocoupler with Triac AC output, featuring a 400V DC rated voltage and 5.3kV isolation voltage. Designed for through-hole mounting in a DIP package, it operates with a 50mA forward current and 1.25V nominal input voltage. This component offers 100mA RMS output current and a maximum power dissipation of 350mW, with an operating temperature range of -40°C to 85°C. Approvals include CSA, VDE, UR, CQC, and BSI, with RoHS compliance.
PackageDIP
MountingThrough Hole
Power350mW
Quick Jump:
Technical Specifications
Vishay K3022P technical specifications.
General
| Approvals | CSA, VDE, UR, CQC, BSI |
| Package/Case | DIP |
| Forward Current | 50mA |
| Hold Current | 200uA |
| Input Current | 50mA |
| Isolation Voltage | 5.3kV |
| Max Input Voltage | 1.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 350mW |
| Mount | Through Hole |
| Nominal Input Voltage | 1.25V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 100mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 350mW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 5V |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | Yes |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay K3022P Datasheet
Download the complete datasheet for Vishay K3022P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

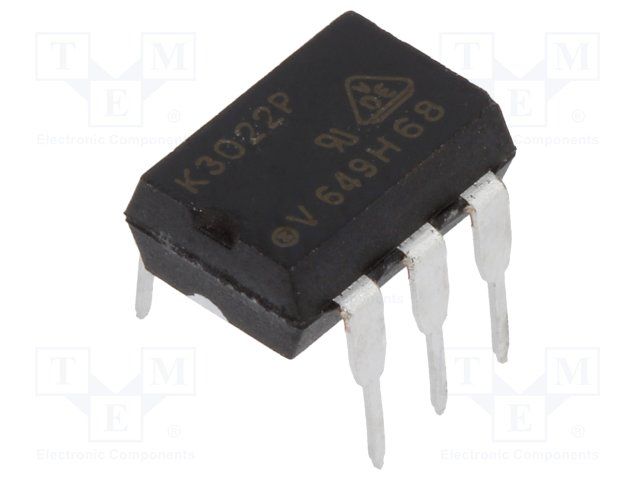

Product Images
