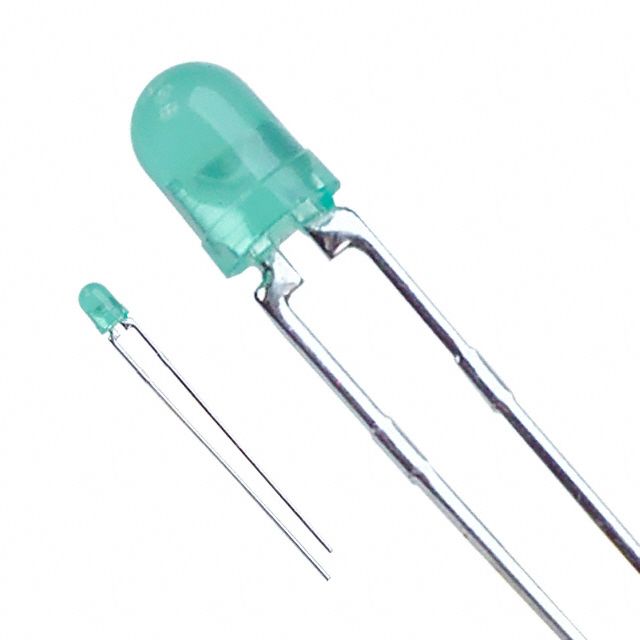

Green diffused through-hole LED emitter with a 3mm diameter and 4.45mm height. Features a diffused, tinted, dome, colored, circular lens style and a 60° viewing angle. Operates with a 30mA forward current, 5V reverse voltage, and 120mW power dissipation. Offers a luminous intensity of 12.6mcd at a 572nm operating wavelength. This lead-free, RoHS-compliant component is suitable for operation between -55°C and 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay LTL-4231N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay LTL-4231N technical specifications.
| Package/Case | T |
| Color | Green |
| Depth | 4.45mm |
| Diameter | 3mm |
| Forward Current | 30mA |
| Height | 4.45mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Lens Style | Diffused, Tinted, Dome, Colored, Circular |
| Luminous Intensity | 12.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Wavelength-Nom | 572nm |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Width | 4.45mm |
| RoHS | Compliant |
