Green LED emitter, T-1 package, through-hole mount. Features a clear, diffused, domed lens with a 3mm diameter and 3.1mm body diameter. Operates with a 30mA forward current, 5V reverse voltage, and 76mW power dissipation. Emits green light with a 575nm wavelength and 310mcd luminous intensity. Suitable for operating temperatures from -40°C to 100°C. Lead-free and RoHS compliant.
PackageT
MountingThrough Hole
Power76mW
Quick Jump:
Technical Specifications
Vishay LTL1CHKGKNN technical specifications.
General
| Package/Case | T |
| Color | Green |
| Depth | 3.8mm |
| Diameter | 3.1mm |
| Forward Current | 30mA |
| Height | 5.2mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 3.8mm |
| Lens Color | Colorless |
| Lens Size | 3mm |
| Lens Style | Round, Domed, Dome, Diffused, Colorless, Circular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 310mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 76mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 45° |
| Wavelength | 575nm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTL1CHKGKNN Datasheet
Download the complete datasheet for Vishay LTL1CHKGKNN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

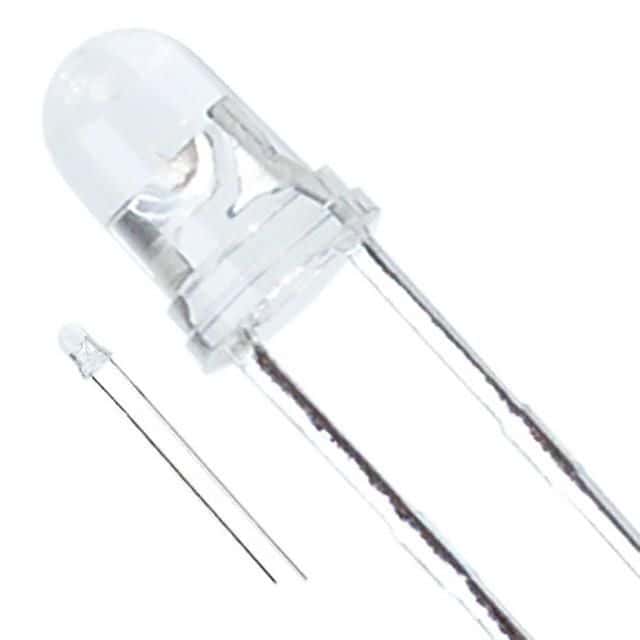

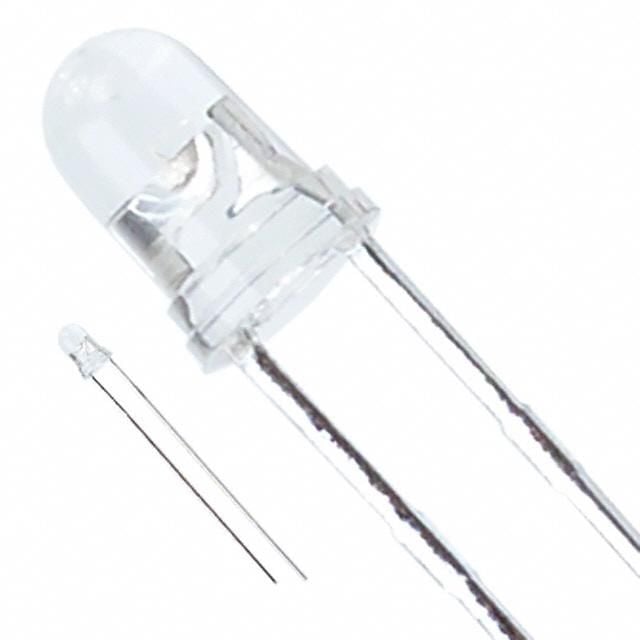

Product Images
