Red alphanumeric LED display, 0.5-inch character height, featuring a 17-element design for general indication. This through-hole component operates with a 20mA forward current and 2V supply voltage, emitting red light with a luminous intensity of 2.2mcd at a 623nm wavelength. Encased in a DIP package, it offers a wide operating temperature range from -35°C to 85°C and is lead-free and RoHS compliant.
PackageDIP
MountingThrough Hole
Power75mW
Quick Jump:
Technical Specifications
Vishay LTP-587HR technical specifications.
General
| Package/Case | DIP |
| Color | Red |
| Depth | 16mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 25mm |
| Luminous Intensity | 2.2mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Power Dissipation | 75mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 17 |
| Operating Supply Voltage | 2V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Consumption | 75mW |
| Power Dissipation | 75mW |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 12.7mm |
| Viewing Area Length | 8.25mm |
| Wavelength | 623nm |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTP-587HR Datasheet
Download the complete datasheet for Vishay LTP-587HR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

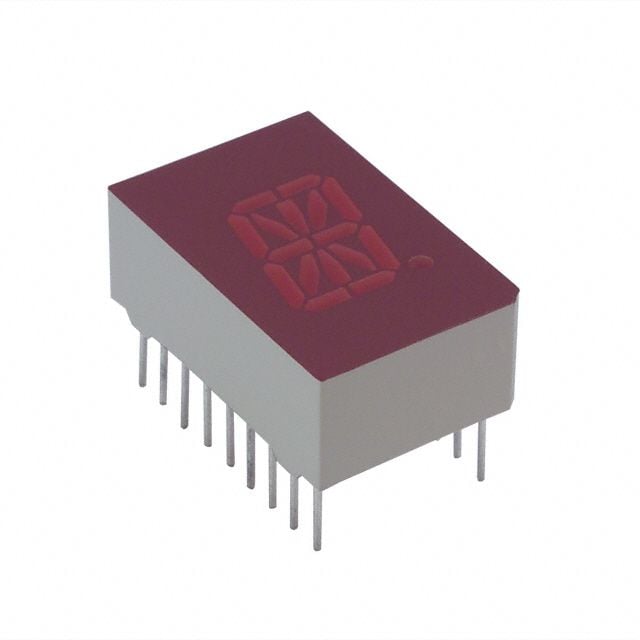

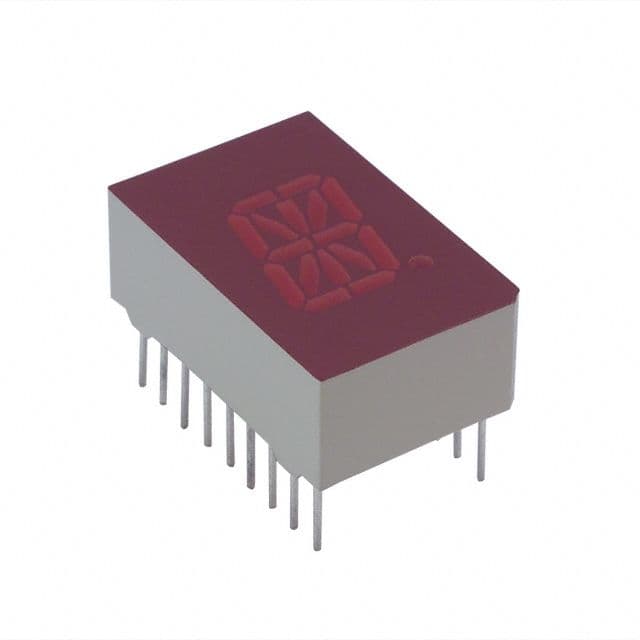

Product Images
