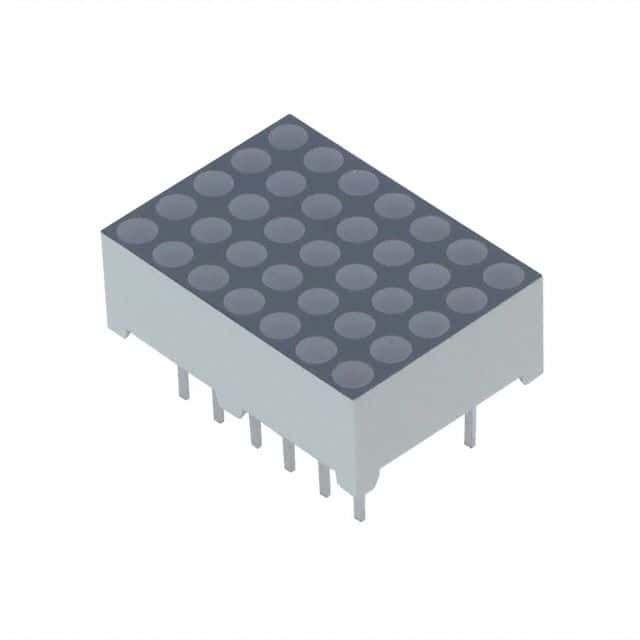

Green 0.7-inch 5x7 dot matrix LED display module featuring 35 individual green LEDs. This through-hole component operates with a 2.1V forward voltage and 20mA forward current, delivering 2mcd luminous intensity. Housed in a DIP package, it offers a wide operating temperature range from -35°C to 85°C and a 5V reverse voltage rating. RoHS compliant and designed for reliable performance.
PackageDIP
MountingThrough Hole
Power32mW
Quick Jump:
Technical Specifications
Vishay LTP-757G technical specifications.
General
| Package/Case | DIP |
| Color | Green |
| Depth | 12.66mm |
| Display Type | Dot Matrix |
| Forward Current | 20mA |
| Height | 6.3mm |
| Illumination Color | Green |
| Length | 17.74mm |
| Luminous Intensity | 2mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Reverse Current | 100uA |
| Mount | Through Hole |
| Number of Elements | 35 |
| Number of LEDs | 35 |
| Operating Supply Voltage | 2.1V |
| Package Quantity | 28 |
| Packaging | Rail/Tube |
| Power Consumption | 32mW |
| Power Dissipation | 32mW |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 17.22mm |
| Wavelength | 569nm |
| Width | 12.66mm |
Compliance
| RoHS | Compliant |
