Surface mount red LED emitter in a 1206 (3216 metric) package. Features a clear, diffused, flat lens with a 130° viewing angle. Operates with a 30mA forward current, 5V reverse voltage, and 75mW power dissipation. Emits red light with a typical wavelength of 639nm and luminous intensity of 54mcd. Suitable for operation between -30°C and 85°C. Packaged on tape and reel.
Package1206
MountingSurface Mount
Power75mW
Quick Jump:
Technical Specifications
Vishay LTST-C150KRKT technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Color
Red
Depth
1.6mm
Forward Current
30mA
Height
1.1mm
Illumination Color
Red
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Size
1.6mm
Lens Style
Flat, Diffused, Colorless, Rectangular, Clear
Lens Transparency
Clear
Luminous Intensity
54mcd
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
75mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
130°
Wavelength
639nm
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTST-C150KRKT Datasheet
Download the complete datasheet for Vishay LTST-C150KRKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

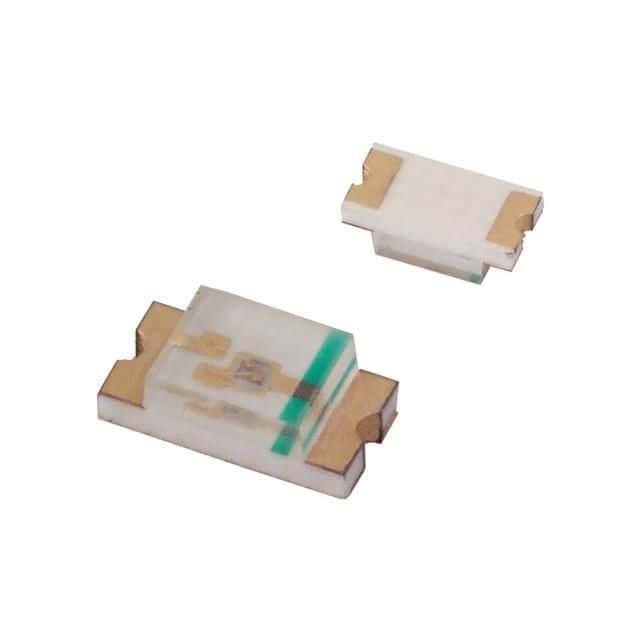

Product Images
