Surface mount yellow LED emitter with a 1206 (3216 metric) case code. Features a clear, diffused, flat lens and a 130° viewing angle. Operates with a 20mA forward current, 5V reverse voltage, and 60mW power dissipation. Emits yellow light at a 585nm wavelength with a luminous intensity of 6mcd. This lead-free, RoHS compliant component is supplied on tape and reel.
Package1206
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Vishay LTST-C150YKT technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Color
Yellow
Depth
1.6mm
Forward Current
20mA
Height
1.1mm
Illumination Color
Yellow
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Size
1.6mm
Lens Style
Flat, Diffused, Colorless, Rectangular, Clear
Lens Transparency
Clear
Luminous Intensity
6mcd
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
60mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
130°
Wavelength
585nm
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTST-C150YKT Datasheet
Download the complete datasheet for Vishay LTST-C150YKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

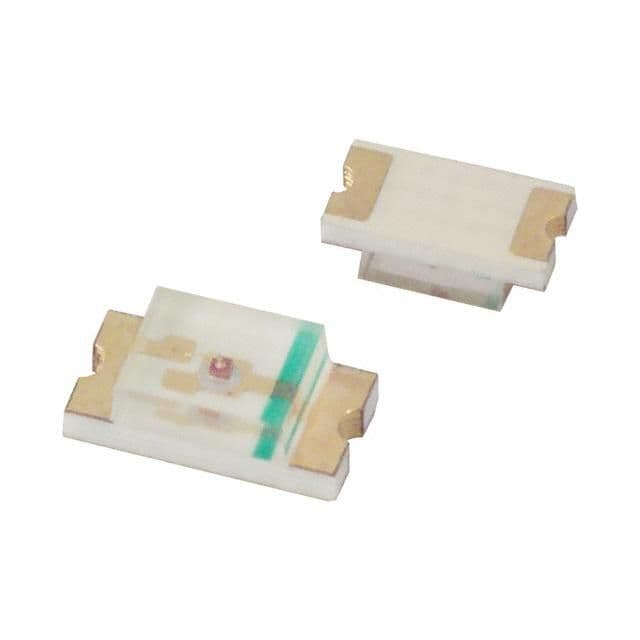

Product Images
