Surface mount orange LED emitter in a 0805 (2012 metric) package. Features a diffused, colorless, rectangular lens with a 130° viewing angle. Operates with a 30mA forward current and a 5V reverse voltage, offering a luminous intensity of 4.5mcd at a 610nm wavelength. This lead-free, RoHS compliant component has a power dissipation of 100mW and operates across a temperature range of -55°C to 85°C.
Package0805
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Vishay LTST-C171AKT technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Color
Orange
Depth
1.25mm
Forward Current
30mA
Height
0.8mm
Illumination Color
Orange
Lead Free
Lead Free
Length
2mm
Lens Color
Colorless
Lens Style
Diffused, Colorless, Rectangular
Lens Transparency
Clear
Luminous Intensity
4.5mcd
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
100mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
130°
Wavelength
610nm
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTST-C171AKT Datasheet
Download the complete datasheet for Vishay LTST-C171AKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

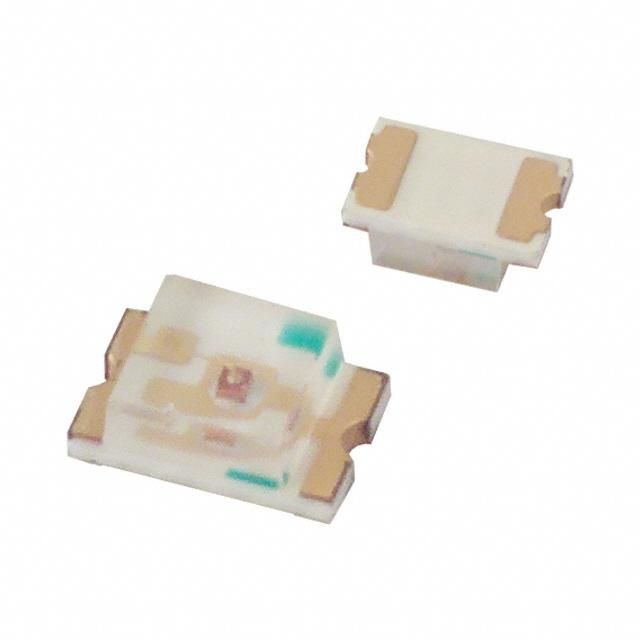

Product Images
