Green clear chip LED emitter, surface mount, 0805 package (2012 metric). Features a 130° viewing angle, 565nm wavelength, and 12mcd luminous intensity. Operates with a 30mA forward current and 5V reverse voltage, with 100mW power dissipation. Encased in a colorless, flat, diffused lens, this lead-free, RoHS compliant component is supplied on tape and reel.
Package0805
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Vishay LTST-C171GKT technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Color
Green
Depth
1.25mm
Forward Current
30mA
Height
0.9mm
Illumination Color
Green
Lead Free
Lead Free
Length
2mm
Lens Color
Colorless
Lens Size
1.25mm
Lens Style
Flat, Diffused, Colorless, Rectangular, Clear
Lens Transparency
Clear
Luminous Intensity
12mcd
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
100mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
130°
Wavelength
565nm
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTST-C171GKT Datasheet
Download the complete datasheet for Vishay LTST-C171GKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

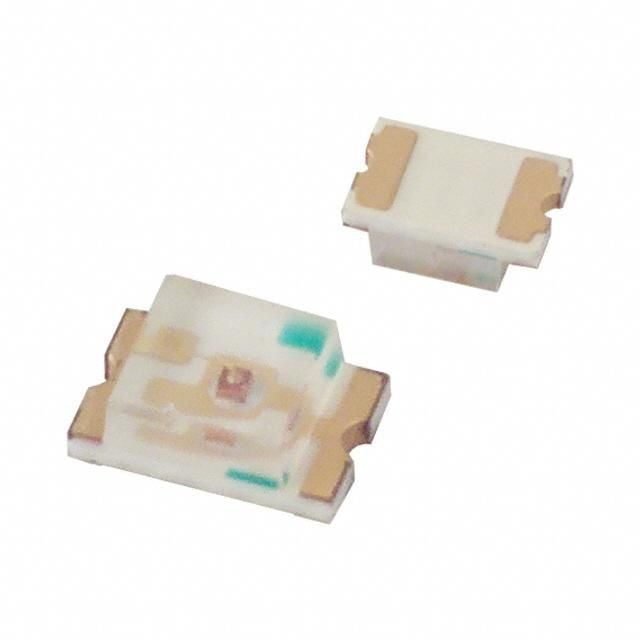

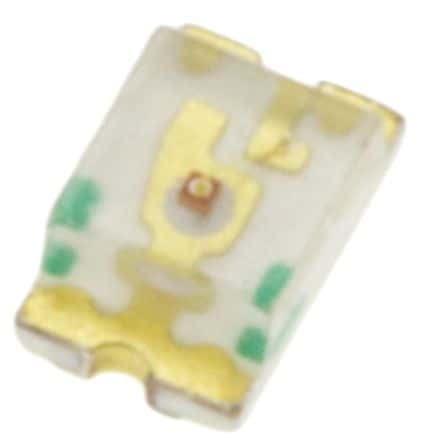

Product Images
