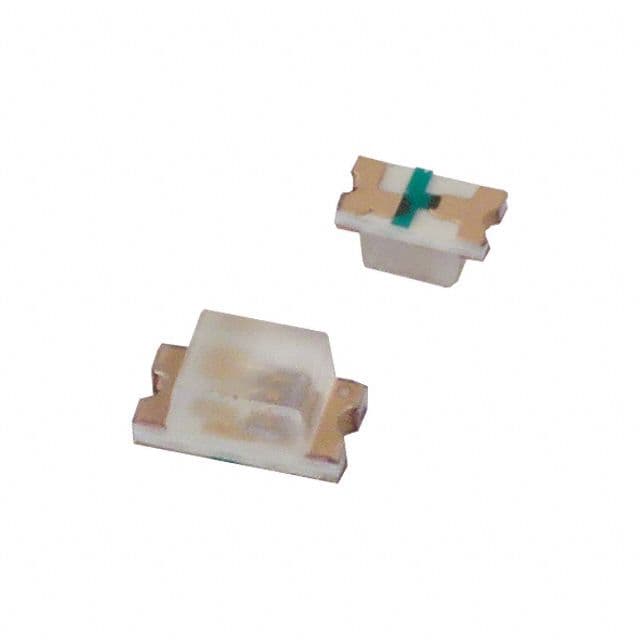

Surface mount orange LED emitter in a 0603 (1608 metric) package. Features a clear, diffused, flat, rectangular lens with a 130° viewing angle. Operates with a 30mA forward current and a 5V reverse voltage, delivering 90mcd luminous intensity at a 605nm wavelength. This RoHS compliant component has a power dissipation of 75mW and a wide operating temperature range of -55°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay LTST-C190KFKT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay LTST-C190KFKT technical specifications.
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Orange |
| Depth | 1.6mm |
| Forward Current | 30mA |
| Height | 0.9mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Colorless, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 90mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 47kR |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
| Viewing Angle | 130° |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Wavelength | 605nm |
| Width | 0.8mm |
| RoHS | Compliant |
