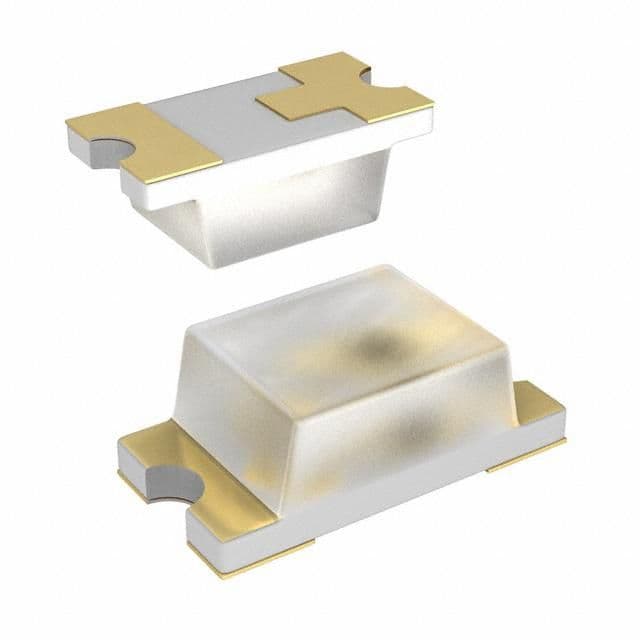

Surface mount LED emitter, 0603 package, featuring a clear, diffused, flat, rectangular lens. Emits orange light with a wavelength of 605nm and a luminous intensity of 90mcd. Operates with a forward current of 30mA and a reverse voltage of 5V, with a maximum power dissipation of 75mW. Designed for a wide operating temperature range from -55°C to 85°C, this lead-free and RoHS compliant component offers a broad 130° viewing angle.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay LTST-C191KFKT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay LTST-C191KFKT technical specifications.
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Orange |
| Depth | 0.8mm |
| Forward Current | 30mA |
| Height | 0.65mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Colorless, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 90mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 605nm |
| Width | 0.8mm |
| RoHS | Compliant |
