Green clear surface mount LED emitter, 0603 package (1608 metric), featuring a 130° viewing angle and 35mcd luminous intensity. Emitting at a 576.5nm wavelength, this lead-free, RoHS compliant component operates from -55°C to 85°C with a maximum power dissipation of 75mW. The flat, rectangular, colorless lens measures 0.8mm, housed within a 1.6mm x 0.8mm x 0.65mm case. Supplied on tape and reel.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay LTST-C191KGKT technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Green |
| Height | 0.65mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Size | 0.8mm |
| Lens Style | Flat, Rectangular, Colorless |
| Lens Transparency | Clear |
| Luminous Intensity | 35mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 75mW |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 576.5nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTST-C191KGKT Datasheet
Download the complete datasheet for Vishay LTST-C191KGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

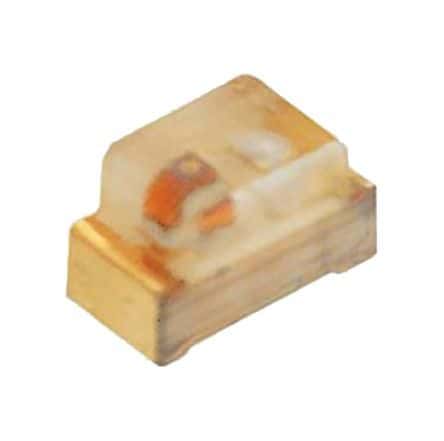

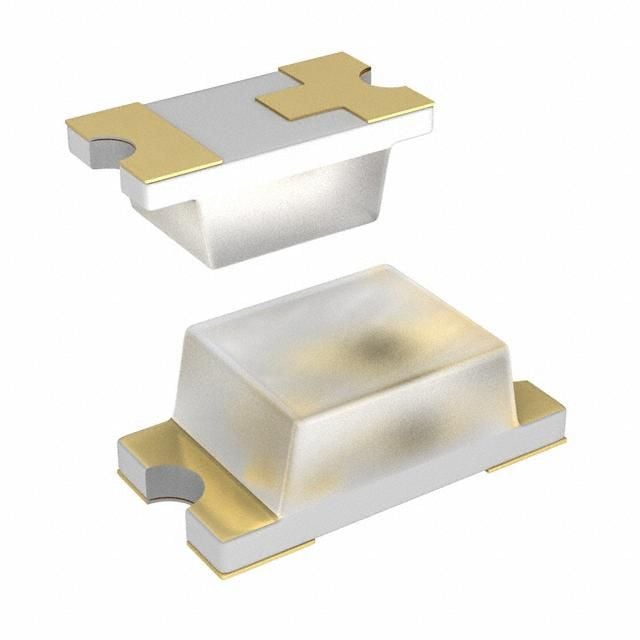

Product Images
