Dual-color LED emitter featuring blue and red illumination in a compact 0605 (1.6mm x 1.5mm x 0.55mm) surface-mount package. This component offers a 130° viewing angle and a luminous intensity of 45mcd. Designed for a 20mA forward current and a 5V reverse voltage, it operates within a temperature range of -20°C to 100°C. The clear, diffused lens provides excellent light output, and the unit is lead-free and RoHS compliant.
Package0605
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay LTST-C195TBJRKT technical specifications.
General
| Case Code (Imperial) | 0605 |
| Case Code (Metric) | 1613 |
| Package/Case | 0605 |
| Color | Blue, Red |
| Depth | 1.6mm |
| Forward Current | 20mA |
| Height | 0.55mm |
| Illumination Color | Blue, Red |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Lens Color | Colorless |
| Lens Style | Diffused, Colorless, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 45mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTST-C195TBJRKT Datasheet
Download the complete datasheet for Vishay LTST-C195TBJRKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

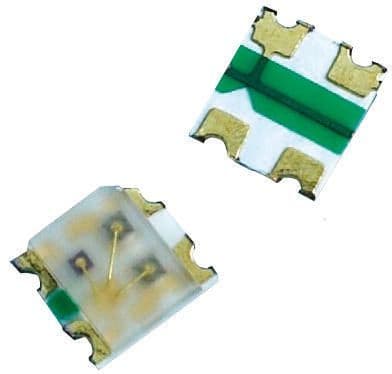

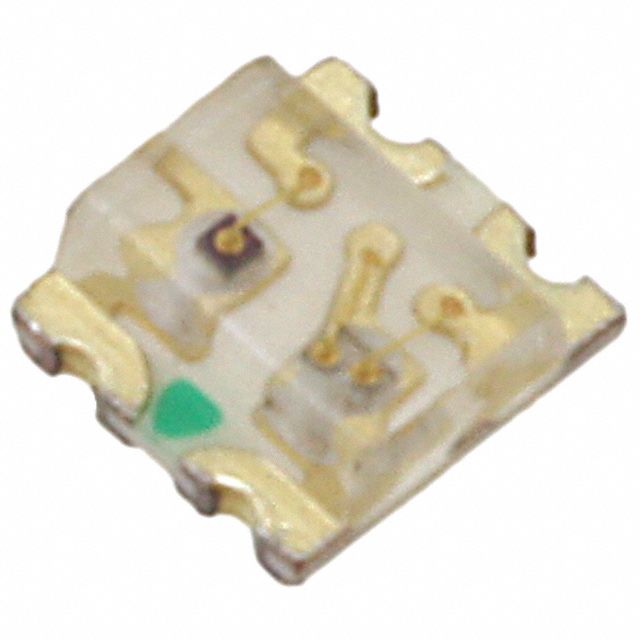

Product Images
