Surface mount red LED emitter in a 1206 (3216 metric) case code. Features a 1.6mm x 3.2mm x 1.1mm footprint with a flat, diffused, clear lens. Operates with a 30mA forward current, delivering 54mcd luminous intensity at a 631nm wavelength. Offers a wide 130° viewing angle and is RoHS compliant.
Package1206
MountingSurface Mount
Power75mW
Quick Jump:
Technical Specifications
Vishay LTST-C230KRKT technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Red |
| Depth | 1.6mm |
| Forward Current | 30mA |
| Height | 1.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 1.6mm |
| Lens Style | Flat, Diffused, Colorless, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 54mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 631nm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTST-C230KRKT Datasheet
Download the complete datasheet for Vishay LTST-C230KRKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

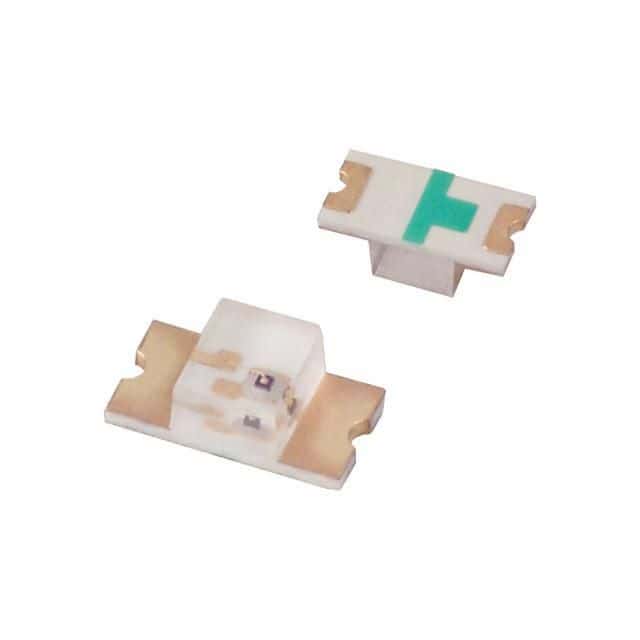

Product Images
