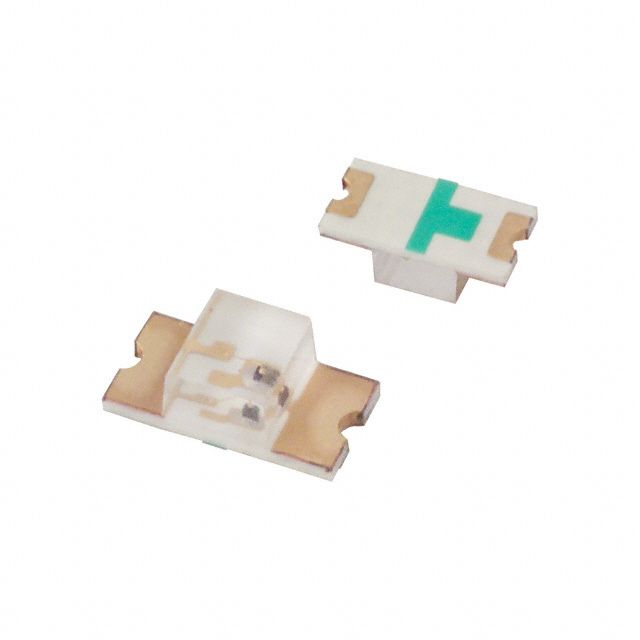

Surface mount yellow LED emitter in a 1206 (3216 metric) package. Features a diffused, colorless rectangular lens with a 130° viewing angle. Emits yellow light with a typical luminous intensity of 4.5mcd at 20mA forward current and a wavelength of 585nm. Operates within a temperature range of -55°C to 85°C. Lead-free and RoHS compliant.
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay LTST-C230YKT technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Color
Yellow
Forward Current
20mA
Height
1.1mm
Illumination Color
Yellow
Lead Free
Lead Free
Length
3.2mm
Lens Color
Colorless
Lens Style
Diffused, Colorless, Rectangular
Lens Transparency
Clear
Luminous Intensity
4.5mcd
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
130°
Wavelength
585nm
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTST-C230YKT Datasheet
Download the complete datasheet for Vishay LTST-C230YKT to view detailed technical specifications.
