Surface mountable, dual-element LED emitter featuring green and red illumination. This clear, diffused, domed, rectangular lens chip component operates with a 30mA forward current and 2V forward voltage. Delivering 45mcd luminous intensity, it offers a wide 130° viewing angle and is packaged in tape and reel for efficient assembly. Operating across a -55°C to 85°C temperature range, this lead-free, RoHS compliant component is designed for general optoelectronic applications.
PackageSMD/SMT
Voltage2V
MountingSurface Mount
Power75mW
Quick Jump:
Technical Specifications
Vishay LTST-S326KGJRKT technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Green, Red |
| Depth | 1mm |
| Forward Current | 30mA |
| Height | 1mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Size | 1mm |
| Lens Style | Domed, Diffused, Colorless, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 45mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Voltage | 2V |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTST-S326KGJRKT Datasheet
Download the complete datasheet for Vishay LTST-S326KGJRKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

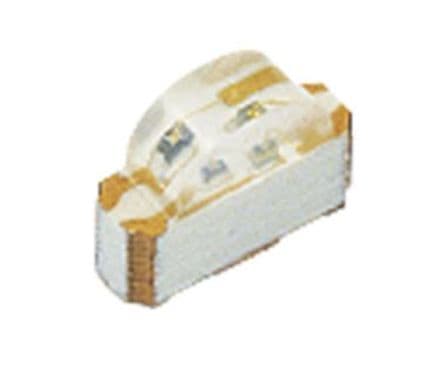

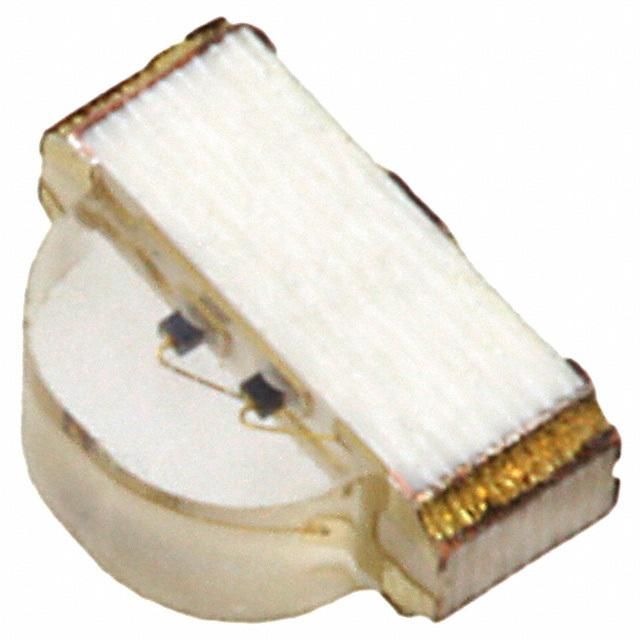

Product Images
