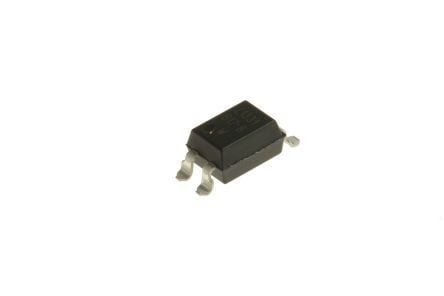

General purpose optocoupler featuring a single channel with DC input and transistor DC output. Offers 5kV isolation voltage and a maximum collector current of 50mA. Key specifications include a 35V collector-emitter voltage (VCEO), 200mV collector-emitter saturation voltage, and a current transfer ratio of 260%. Packaged in a 4-pin SMD/SMT DIP for surface mounting, this component operates within a temperature range of -30°C to 110°C.
PackageSMD/SMT
MountingSurface Mount
Power70mW
Quick Jump:
Technical Specifications
Vishay LTV-817S-TA1-B technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
260%
Fall Time
18000ns
Forward Current
20mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-30°C
Max Output Voltage
35V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
70mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
Compliance
RoHS
Compliant
Datasheet
Vishay LTV-817S-TA1-B Datasheet
Download the complete datasheet for Vishay LTV-817S-TA1-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
